Quick Details

  • Material: ductile iron
  • Technics: Casting
  • Type: Coupling
  • Place of Origin: Henan, China (Mainland)
  • Model Number: 2"-72"
  • Brand Name: hengzhong
  • Connection: Flange
  • Shape: cylindrical
  • Head Code: round
  • Name: flanged expansion joint
  • Product name: pipe fitting flanged expansion joint
  • Application: Pipeline valve axial displacement caused by heat bilges cold shrink
  • Standard: DIN,ANSI,JIS,BS
  • Color: Blue, gray, white
  • Size: 50mm-3200mm
  • Certificate: ISO 9001,The production license
  • Surface treatment: Plastic spraying, 250-400μm
  • Usage: Connection pipe valves
  • Pressure standard: Germany standard

Packaging & Delivery

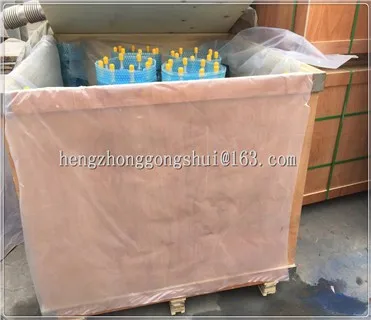

Packaging Details: PN16 carbon steel material dismantling joint flanged expansion joint:wooden cases (mix packing or every size packing:in usually the size of 1100mm*1100mm*1100mm ,the 20 feet container can hold 18 wooden cases .)
pack all goods in wooden case or pallet and cover it with plastic sheet,to avoid carton damage and rain and container condensation water
Delivery Detail: 5-10
Product Description

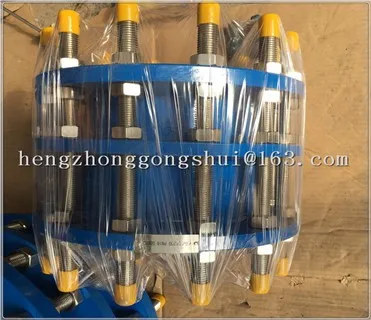

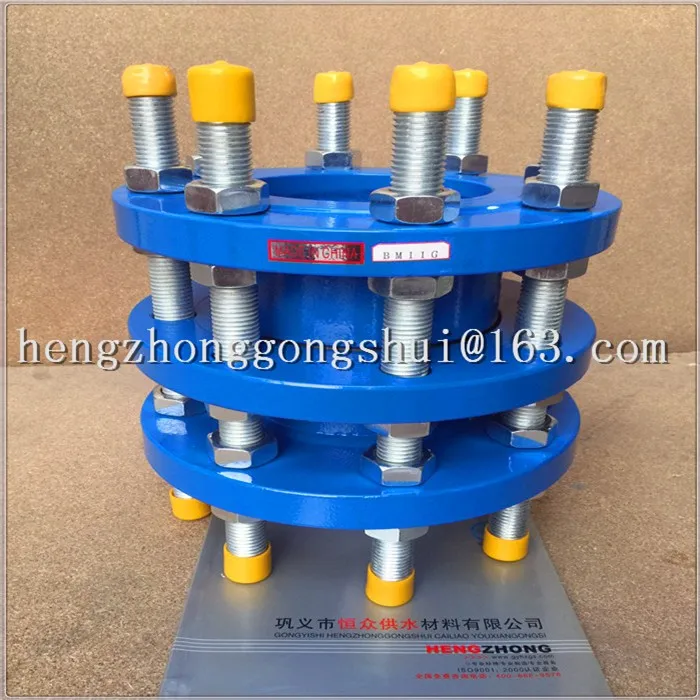

PN16 carbon steel material dismantling joint flanged expansion joint

PN16 carbon steel material dismantling joint flanged expansion joint, pipes and other devices connected to the pipeline of new products, connected by the bolt, making it a whole, and has certain displacement, convenient installation. Can withstand axial stress of pipeline. So you can at the time of installation and maintenance, according to the on-site installation size adjustment, at work, not only improve the work efficiency, but also for pump, valve, pipeline equipment play a protective role.

PN16 carbon steel material dismantling joint flanged expansion joint main features

1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. The product is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.
5. Effective compensation and relief pipe in the course of pipeline and blind thrust, and facilitate water pump, valve replacement, installation and maintenance is a pipe installation in the shipping industry is the most ideal accessory products.

Certifications

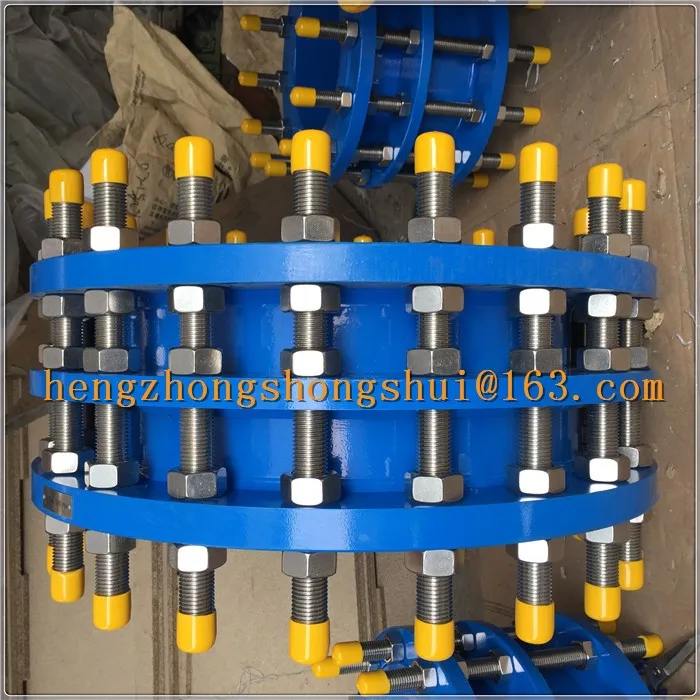

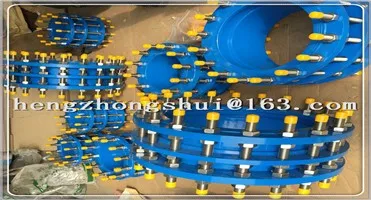

Detailed Images

Name: PN16 carbon steel material dismantling joint flanged expansion joint

Brand: hengzhong

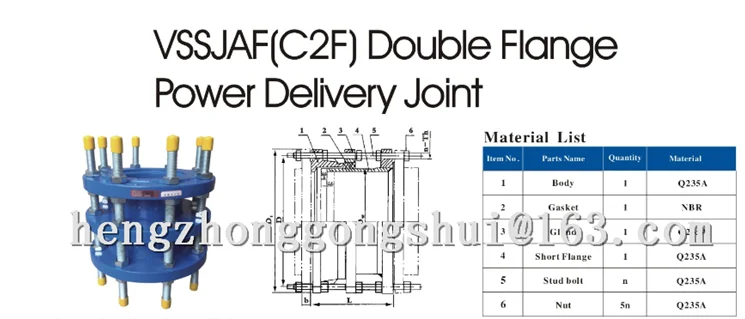

Main materiall: Nodular cast iron, carbon steel, NBR


PN16 carbon steel material dismantling joint flanged expansion joint main features

1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. The product is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.

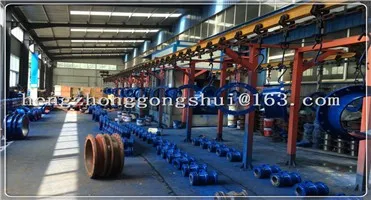

PN16 carbon steel material dismantling joint flanged expansion joint Plastic spraying field

1, before treatment: oil removal, rust removal, phosphating, passivation.
2, electrostatic spraying, powder coating evenly sprayed onto the surface of the workpiece.
3, powder curing: use is 180 ℃ baking powder curing process for 30 minutes, belongs to the normal maintenance.


Coating thickness can reach the effect you want!

Our Service

PN16 carbon steel material dismantling joint flanged expansion joint

* support your research and consulting.
* support the sample test.
* welcome you to visit our factory.

PN16 carbon steel material dismantling joint flanged expansion joint After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
12''
Weight
76kg

Packaging Details
Plastic packaging
Packaging
Size
1100 (L) * 1100 (W) *1100(D)Depending on the product size can adjust the size in wooden cases
Weight
1.2 T



Packaging Details
wooden cases packing
