Quick Details

  • Material: ductile iron
  • Technics: Casting
  • Type: Coupling
  • Place of Origin: Henan, China (Mainland)
  • Model Number: 2"-72"
  • Brand Name: hengzhong
  • Connection: Flange
  • Shape: cylindrical
  • Head Code: round
  • Name: Flanged Dismantling Joints
  • Product name: Standard Dismantling Joint
  • Application: Pipeline valve axial displacement caused by heat bilges cold shrink
  • Standard: DIN,ANSI,JIS,BS
  • Color: Blue, gray, white
  • Size: 50mm-3200mm
  • Certificate: ISO 9001,The production license
  • Surface treatment: Plastic spraying, 250-400μm
  • Usage: Connection pipe valves
  • Pressure standard: Germany standard Flanged Dismantling Joints

Packaging & Delivery

Packaging Details Mild Steel Double Flanged Dismantling Joints :wooden cases (mix packing or every size packing:in usually the size of 1100mm*1100mm*1100mm ,the 20 feet container can hold 18 wooden cases .)
pack all goods in wooden case or pallet and cover it with plastic sheet,to avoid carton damage and rain and container condensation water
Delivery Time 5-10
Product Description

Mild Steel Double Flanged Dismantling Joints

Mild Steel Double Flanged Dismantling Joints, valves, pipes and other devices connected to the pipeline of new products, connected by the bolt, making it a whole, and has certain displacement, convenient installation. Can withstand axial stress of pipeline. So you can at the time of installation and maintenance, according to the on-site installation size adjustment, at work, not only improve the work efficiency, but also for pump, valve, pipeline equipment play a protective role.

Mild Steel Double Flanged Dismantling Joints main features

1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. The product is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.
5. Effective compensation and relief pipe in the course of pipeline and blind thrust, and facilitate water pump, valve replacement, installation and maintenance is a pipe installation in the shipping industry is the most ideal accessory products.

Certifications
Detailed Images

Name: Mild Steel Double Flanged Dismantling Joints

Brand: hengzhong

Main materiall: Nodular cast iron, carbon steel, NBR


Mild Steel Double Flanged Dismantling Joints Main Features

1. Easy and convenient installation, convenient valve installation, affordable pipeline axial tension.
2. The product is casting or welding metal, loose tube parts choose trapezoidal rubber seal, under the action of gland and bolt.
3. The principle of using rubber compression elastic deformation. Forced sealing ring deformation on the outer wall of pipe joint ontology between static seal.
4. Metal and seal strictly according to the using performance and user requirements. External coating material high strength anti-corrosion paint, by connecting bolts for high strength carbon steel or stainless steel. Because of a certain gap between ontology and telescopic tube, make it has a certain axial and radial displacement.
5. Effective compensation and relief pipe in the course of pipeline and blind thrust, and facilitate water pump, valve replacement, installation and maintenance is a pipe installation in the shipping industry is the most ideal accessory products.

Mild Steel Double Flanged Dismantling Joints Plastic spraying field

1, the former processing: to remove oil, dirt, rust on the surface of the workpiece, and generate a layer of corrosion in workpiece surface and increases the "phosphate layer" of spraying coating adhesion. The main process steps: oil removal, rust removal, phosphating, passivation. Artifacts after prior treatment not only surface without oil, rust, dust, and generated on the surface layer of the original silver luster evenly and coarse gray phosphating film is not easy to rust, both can rust and can increase the coating layer adhesion.

2, electrostatic spraying, the powder coating evenly sprayed onto the surface of the workpiece, special artifacts (including prone to the location of the electrostatic shielding) high-performance electrostatic spray molding machine should be used to complete the painting.
3, powder curing: using powder curing process is 180 ℃, bake for 15 min, belongs to the normal curing. The temperature and time is refers to the actual temperature of the workpiece and maintenance of temperature is not lower than the accumulation of time, rather than the set temperature and curing furnace workpiece in furnace walking time. But the correlation between, equipment debugging initially need to use the furnace temperature tracker, which measure the largest workpiece surface temperature under 3 p.m. and accumulation time, and adjust according to the results of the measurement of curing furnace set temperature and speed of conveyor chain (it decided to artifacts in the furnace of walking time), until it can meet the demands of the curing process.


Coating thickness can reach the effect you want!

Our Service

Mild Steel Double Flanged Dismantling Joints

* support your research and consulting.
* support the sample test.
* welcome you to visit our factory.

Mild Steel Double Flanged Dismantling Joints After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Carbon steel material dismantling joint Packaging
Size
12''
Weight
76kg

Packaging Details
With plastic film winding layer first, in use bubble film winding layer.
Mild Steel Double Flanged Dismantling Joints Packaging
Size
1100 (L) * 1100 (W) *1100(D)Depending on the product size can adjust the size in wooden cases
Weight
1.2 T



Packaging Details
First export transportation distance is long, with shipping, more bumpy, so packaging requirements are secure, moisture, rust, mouldproof, waterproof, etc. And export for wooden pallets using composite board class fumigation-free material or wood fumigation processing. According to different countries, there are some religious beliefs, packaging materials selection should consider the factors.

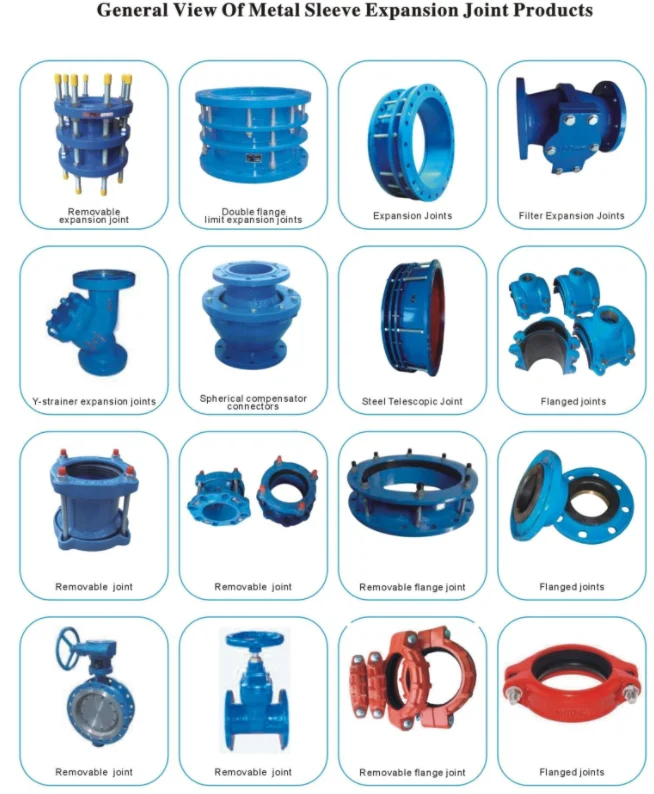

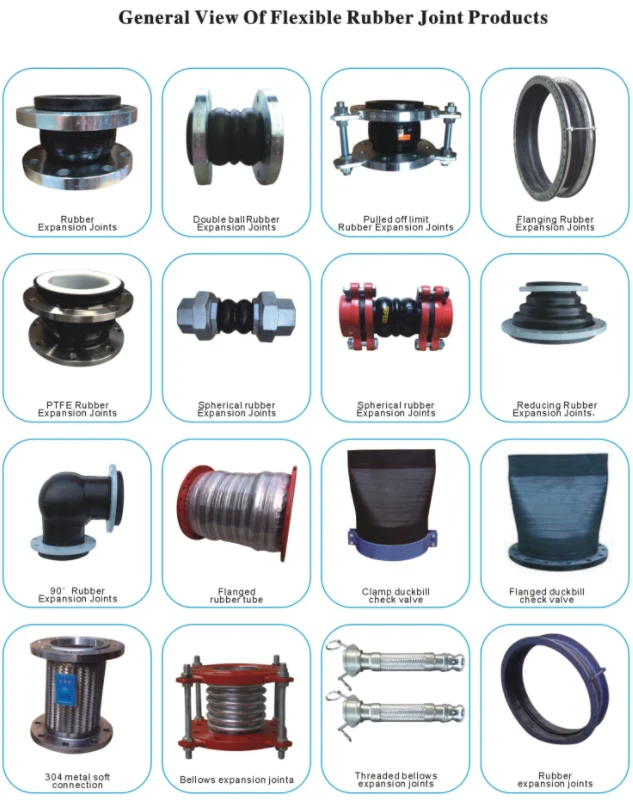

Related Products
